Annular BOPs

Series 800/900 Annular BOPs

Reliable & Safe Design for Oil & Gas Drilling

When working with moving parts in drilling operations, you need dependable equipment you can trust. Our annular blowout preventers’ spherical design allows proper sealing of open holes on various pipe sizes. Annular blowout preventers (BOPs) also provide reliability in high-pressure situations.

Use our annular BOPs at the top of BOP stacks for improved well pressure control during drilling and workover operations. Ideal where space is a priority, the straightforward design and operating system have been proven and accepted for safe operation in all oil and gas areas in the world. Its five main components (lower housing, upper housing, piston, adapter ring, and packing element) allow for easy maintenance and reliability. Stripping of drill pipes, tubing, and wireline through the packing element can also be accomplished at lower pressures.

Questions?

Our team is available to assist you. Connect with us today to learn more about B.O.P. Products.
Contact Us

Features & Benefits of Annular BOPs

  • Steel inserts prevent extrusions of the rubber and feed inward to close on any pipe or tubular in the wellbore.
  • Replaceable bearings are used in the operating system to prevent metal contact of moving parts.
  • Adapter ring located below the upper housing prevents contamination of the operating system during packing element replacement.
  • Wedged cover upper bearing is also available.
  • Available in all standard bore pressure ratings
  • Special rubber materials available for non-standard environments.

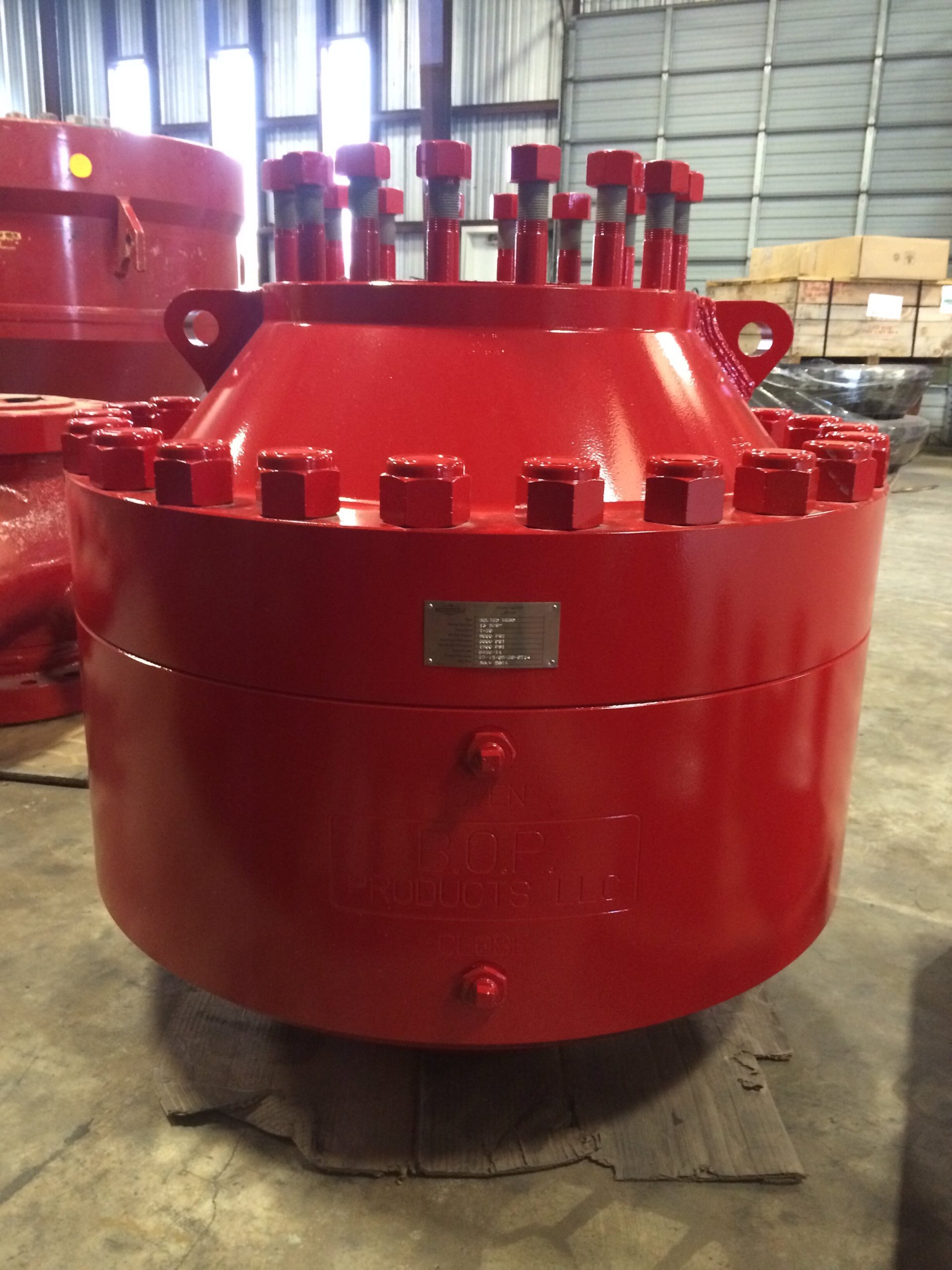

Series 800 Spherical Blowout Preventer

B.O.P.’s Series 800 Spherical BOP is designed for safe well pressure control during drilling and workover operations. Ideal where space is a priority, this short, compact design has been proven and accepted for reliable operation. Its five main components (lower housing, upper housing, piston, adapter ring, and packing element) allow for easy maintenance and reliability.

Moreover, the BOP Products Series 800 packing element can close on all pipes, casing, wireline, coiled tubing and other objects to its full working pressure. Stripping of pipe, tubing, and wireline through the packing element can also be accomplished at lower pressures.

View Specifications

Series 900 Blowout Preventer

B.O.P.’s Series 900 Annular Bop is designed for safe well pressure control during drilling and workover operations. The simple design has been proven and accepted for reliable operation in all oil and gas areas in the world. Its four main components (body, piston, head, and packing element) allow for easy maintenance and reliability. In addition, the packing element can close on all pipe, casing, wireline, coiled tubing, and other objects to its full working pressure. Stripping of pipe, tubing, and wireline through the packing element can also be accomplished at lower pressures.

View Specifications

BOP’s Focus is to Provide High-Quality Products that Perform

We are dedicated to providing an exceptional experience in regards to both products and services. From immediate service on equipment at the operating site to skilled remanufacturing service, BOP Products provides the quick response, knowledge, and true sensitivity to your schedule. We provide blowout preventers up to the diverter size. BOP Products offers 24/7 field service and a large inventory of the most requested parts to minimize downtime on your site.

Speak With An Expert Today

We’re here to ensure you receive continued customer satisfaction through our training, repair, and servicing. Contact us if you’re ready to use our blow out preventers for your oil and gas operations.
