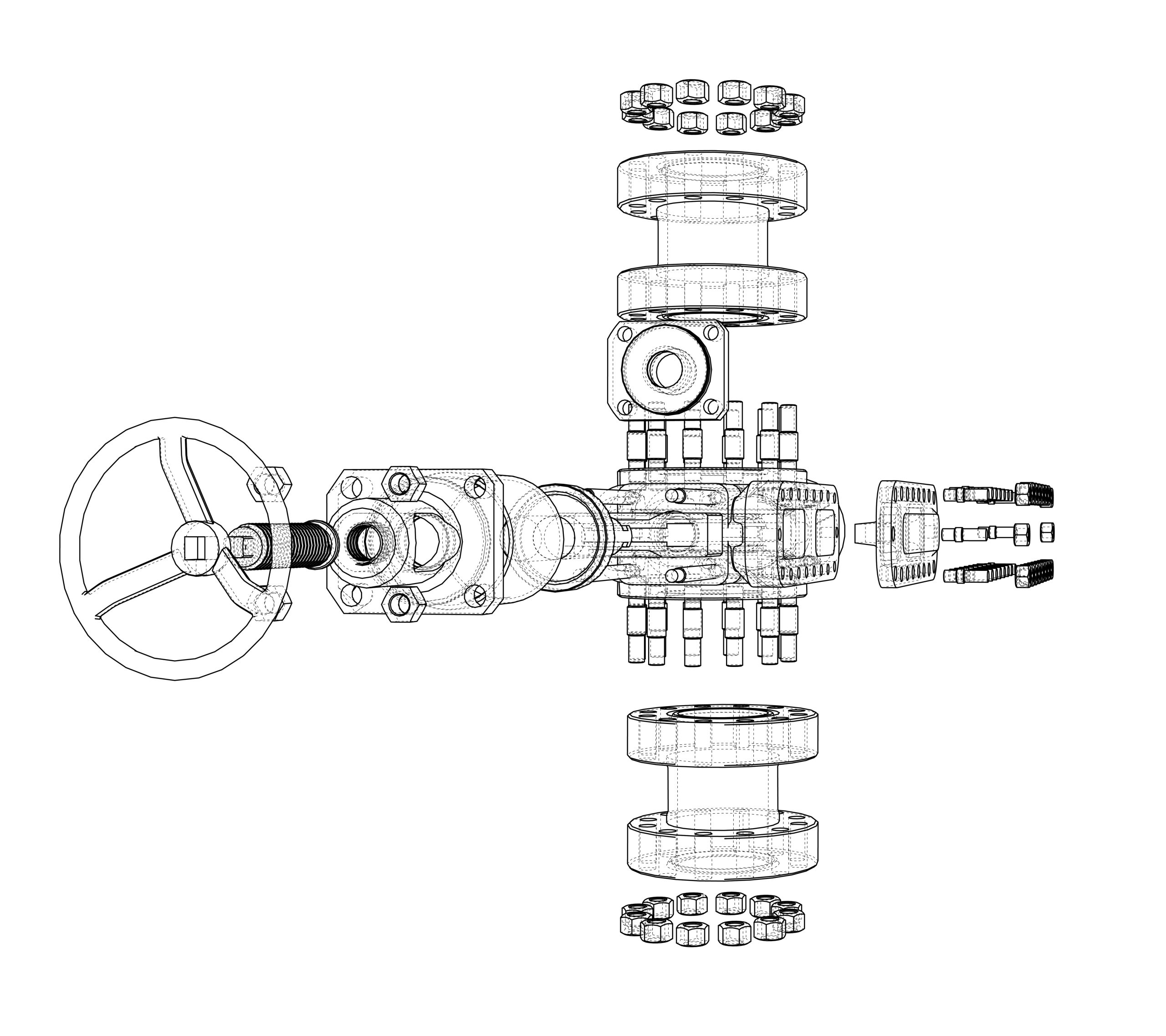

A blowout preventer (BOP) plays an important role in managing the immense pressures in oil and gas drilling. But what exactly is the pressure rating for blowout preventers, and why does it matter? In this blog, we’ll explore what the pressure rating for blowout preventers means, the typical ratings you’ll encounter, and why this detail is so important for drilling safety.
What is a Pressure Rating?
The pressure rating of a blowout preventer dictates the maximum pressure the equipment can safely withstand during operation. This metric ensures a BOP can seal the wellhead and control reservoir fluids, even in tough conditions. Pressure ratings are vital to preventing catastrophic blowouts, safeguarding field personnel, and protecting surrounding environments.
Testing and industry standards, like those set by the API, determine pressure ratings. These ratings serve as benchmarks for engineers and decision-makers when selecting equipment for specific drilling environments.
Measurement Units for Pressure in BOPs
When discussing pressure ratings for blowout preventers (BOPs), the most commonly used unit is pounds per square inch (psi). The oil and gas industry uses this unit because it accurately measures the force applied to an area. This makes it ideal for evaluating the performance of critical safety equipment like BOPs.
In international operations using the metric system, people sometimes convert pressure ratings to bar, where 1 bar equals about 14.5 psi. While some countries use bar, the industry standard is psi manufacturers, suppliers, and operators.
It’s important to note:
- Using consistent measurement units is essential to avoid errors or confusion during equipment selection, system design, and planning.
- When working in different regions, convert and check all pressure ratings to match your specifications.
- Familiarizing your team with psi, bar, and Pascal (Pa) equivalents can simplify operations and prevent confusion.
Common Pressure Ratings for Blowout Preventers
Blowout preventers (BOPs) are safety devices in the oil and gas industry. They control and manage wellbore pressure during drilling operations. Manufacturers design these pieces of equipment with varying pressure ratings to meet the working demands of different wells. The most common pressure ratings used in the industry include:
5,000 psi
This pressure rating is primarily utilized for onshore and shallow offshore drilling operations where well pressure is moderate. Operators typically use BOPs with this rating for conventional wells that don’t experience extreme pressure fluctuations. Due to their moderate specifications, these BOPs are generally more cost-effective, making them ideal for standard drilling projects.
10,000 psi
BOPs with a 10,000 psi rating are suitable for deeper wells or operations with higher reservoir pressures. Operators commonly use these in offshore environments where well conditions require greater pressure control. This rating balances capability and flexibility, making it a popular choice for many medium-to-deep drilling operations.
15,000 psi
Engineers design these BOPs for deepwater drilling and HPHT wells to withstand tough conditions. They are for operations involving complex geology where safety and reliability are essential. Due to their specialized design and materials, 15,000 psi BOPs tend to have higher costs and require more maintenance.
Matching the pressure rating to a project’s specifications is crucial to ensure your equipment can handle operating pressures reliably.
Differences Between Annular and Ram-Type BOP Pressure Ratings
Blowout preventers (BOPs) are critical components in well control systems, with two main types: annular BOPs and ram BOPs. Understanding their pressure ratings and functions is key to choosing the right equipment for your drilling operation.
- Typically have lower pressure ratings, such as 5,000 psi or 10,000 psi, though some specialized models can handle higher pressures.
- They have a flexible rubber seal that can fit around different pipe sizes, drill strings, or open holes.
- Their flexibility makes them a popular choice for general well-control tasks, including sealing irregular or non-cylindrical shapes.
- The flexible seal is less durable under high pressure and may need more frequent maintenance or replacement.
- Available with higher pressure ratings, up to 15,000 psi, making them ideal for high-pressure, high-temperature drilling.
- Use steel rams to create a tight, secure seal. You can customize these rams for different tasks, such as pipe rams, blind rams, or shear rams that cut the drill pipe in emergencies.
- Their durability and reliability under extreme conditions make them ideal for ensuring maximum well control during critical operations.
- While they are less versatile than annular BOPs in sealing irregular shapes, their design provides a more reliable seal for specific pipe sizes and well conditions.
Annual BOP or RAM BOP?
- Operation type: Determine whether your operation requires flexibility (favoring annular BOPs) or the ability to handle extreme pressures (favoring ram BOPs).
- Pressure requirements: Match the BOP’s pressure rating with the expected and maximum pressures in your well.
- System configuration: Most well control systems use both annular and ram BOPs in a stack to provide full well control.
- Maintenance and reliability: Ram BOPs last longer, while annular BOPs may need rubber seal replacements more often.
Both types serve critical roles in well-control systems; however, their pressure ratings and applications differ significantly. Your selection should depend on the characteristics of your drilling operation.
Factors That Influence Pressure Ratings
Key factors determine a BOP’s pressure rating, ensuring reliable performance in tough conditions. Understanding and choosing these factors correctly are essential for safety, efficiency, and compliance.
1. Material Composition and Mechanical Design
- High-strength metals: Engineers design steel alloys that can handle extreme pressures and resist corrosion in harsh drilling conditions.
- Sealing technologies: Advanced elastomers and composite materials improve sealing performance, especially for high-pressure, high-temperature (HPHT) operations, where standard seals may degrade.
- Structural integrity: A well-designed mechanical system spreads evenly, lowering the risk of failure and extending the equipment’s lifespan.
- Temperature resistance: Materials must handle extreme heat or cold, which can weaken components and seals.
2. Working Requirements
- Deepwater Drilling: These operations face pressure from deep and complex subsea wells, needing BOPs rated up to 15,000 psi.
- Onshore Drilling: For wells with lower pressure, 5,000 psi BOPs are a practical and cost-effective option.
- Offshore Platforms: Offshore wells often need BOPs rated between 10,000 psi and 15,000 psi due to varying depths and pressures. Advanced sealing capabilities and corrosion-resistant materials are crucial for these environments.
3. Environmental and Regulatory Factors
- Extreme conditions: HPHT environments require BOPs that can handle pressures beyond normal ranges, ensuring safety during surges.
- Regulatory compliance: Following industry standards, like those from the API, ensures BOPs meet performance requirements for specific operations.
- Environmental risks: In environmentally sensitive areas, additional precautions may require higher pressure ratings to mitigate risks associated with blowouts.
4. Cost, Maintenance, and Longevity
- Durability: Higher-pressure BOPs are more durable but may need special maintenance to stay efficient.
- Cost vs. performance: Choosing a BOP with the right pressure rating avoids overspending and ensures reliability.
- Downtime reduction: Properly rated and maintained BOPs reduce the risk of failure, minimizing unplanned downtime and associated costs.
5. Safety and Contingency Planning
- Safety margins: Choosing a BOP with a higher pressure rating than expected adds a buffer for unexpected surges.
- Emergency preparedness: Equipment rated for extreme pressures is critical for handling sudden blowout scenarios and ensuring the safety of personnel, equipment, and the environment.
Why Pressure Ratings Matter
Engineers design blowout preventers with one primary objective: preventing accidental well flow that could lead to blowouts. A BOP with low-pressure tolerance can fail when needed, risking lives, environmental damage, and costly equipment harm. By selecting a BOP with the correct pressure rating for your well, you reduce these risks significantly.
Regulatory compliance directly ties to pressure ratings. Agencies like the BSEE and API set strict standards for well-control equipment. Following these standards ensures safer operations and avoids penalties or delays. Knowing the pressure rating helps you buy equipment that meets your needs, boosting safety and performance.
In addition, using the correct pressure rating prevents over-investment in equipment with unnecessary high-pressure tolerances, allowing operators to allocate resources more effectively. Balancing safety, cost, and performance is critical for maintaining both profit and compliance in demanding drilling environments.
Ensure Safety with the Right Pressure Rating
Choosing the right pressure rating for blowout preventers ensures the safety of your people, equipment, and environment. Here’s a recap:
- Pressure ratings indicate the maximum pressure a BOP can safely handle. Common ratings include 5,000 psi, 10,000 psi, and 15,000 psi.
- Select BOP materials that match your conditions, such as high temperatures, corrosive environments, or sour gas.
- Account for drilling depth, as it plays a role in determining pressure requirements.
- Assess whether your operations involve high-pressure, high-temperature (HPHT) drilling, which demands BOPs built for extreme conditions.
- Ensure regulatory compliance by choosing a pressure rating that meets industry standards and reduces liability risks.
- Properly maintain higher-rated BOPs by using the right tools and relying on expert care.
- Factor in safety margins to handle unexpected pressure conditions and maintain reliability.
- Plan for future growth by anticipating changes in drilling needs and avoiding under-specified equipment.
As a premier blowout preventer manufacturer, we understand the role blowout preventers play in your operations. We expertly design our BOP solutions to handle various pressure ratings and provide reliable performance in any drilling environment.
Contact us today to discuss your project’s needs. Together, we’ll help you achieve safer and more efficient operations.
